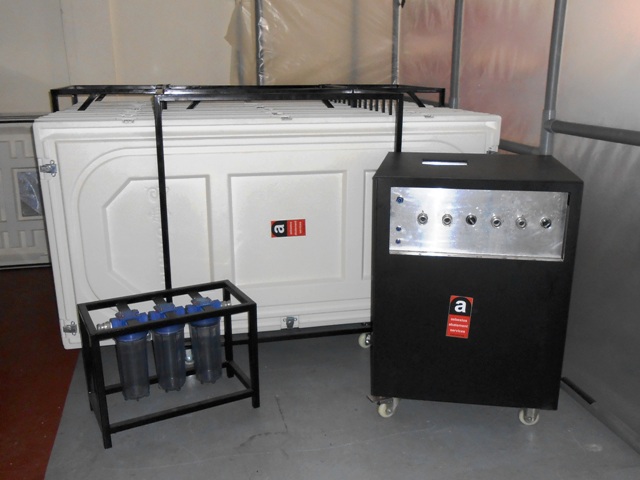

Mobile Decontamination Unit |
Mobile Decontamination Unit includes:
1) ABS modular panel system (3 stage/room configuration)
2) Transport rack
3) Water Management System (WMS MK III)
4) Hose connection set
5) Waste Water filter unit.
1) ABS modular panel system (3 stage/room configuration)
2) Transport rack
3) Water Management System (WMS MK III)
4) Hose connection set
5) Waste Water filter unit.

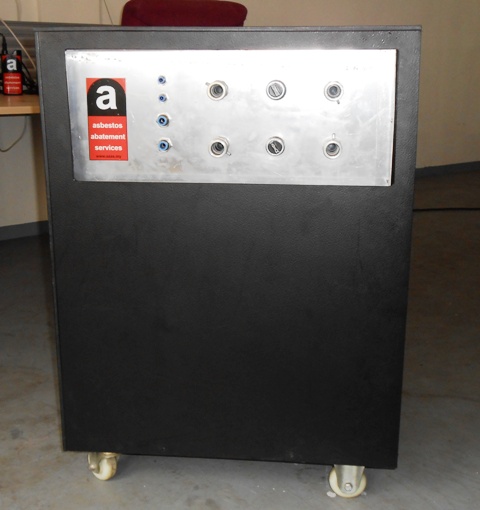

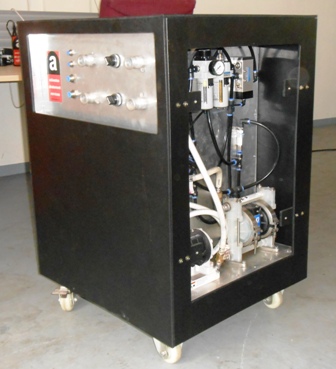

Individual Water Management System (WMS MK III) |
The AAAS water management system is used to supply the shower water and dispose waste water for larger remediation
projects. This system is particularly suitable in combination with a detachable shower or decontamination shower
unit.
Features:
Solid housing
Light weight
Long life
Easy to operate
Pneumatic operated (explosion proof)
Technical details:
Dimensions: 570x670x960 mm
Power supply: compressed air 5 – 8 bar
Empty weight: 55 kg
Filled weight: 145 kg
Connection: Camlock 75C
Water tank volume: 90 liters
Supply water system: diaphragm pump 8-10 l/min
Waste water system: diaphragm pump 12-18 l/min
Features:
Solid housing
Light weight
Long life
Easy to operate
Pneumatic operated (explosion proof)
Technical details:
Dimensions: 570x670x960 mm
Power supply: compressed air 5 – 8 bar
Empty weight: 55 kg
Filled weight: 145 kg
Connection: Camlock 75C
Water tank volume: 90 liters
Supply water system: diaphragm pump 8-10 l/min
Waste water system: diaphragm pump 12-18 l/min
Individual Water Management System (WMS MK IV) |
The AAAS water management system is used to supply the shower water and dispose waste water for larger remediation
projects. This system is particularly suitable in combination with a detachable shower or decontamination shower unit.
Features:
Solid housing and stainless steel frame and tank
Light weight
Long life
Easy to operate
Pneumatic operated (explosion proof)
Build in 2 stage water filtration unit
Technical details:
Dimensions: 570x670x960 mm
Power supply: compressed air 5 – 8 bar
Empty weight: 55 kg
Filled weight: 160 kg
Connection: Camlock 75C
Water tank volume: 105 liters
Supply water system: diaphragm pump 8-10 l/min
Waste water system: diaphragm pump 12-18 l/min
Features:
Solid housing and stainless steel frame and tank
Light weight
Long life
Easy to operate
Pneumatic operated (explosion proof)
Build in 2 stage water filtration unit
Technical details:
Dimensions: 570x670x960 mm
Power supply: compressed air 5 – 8 bar
Empty weight: 55 kg
Filled weight: 160 kg
Connection: Camlock 75C
Water tank volume: 105 liters
Supply water system: diaphragm pump 8-10 l/min
Waste water system: diaphragm pump 12-18 l/min

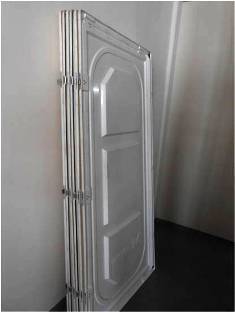

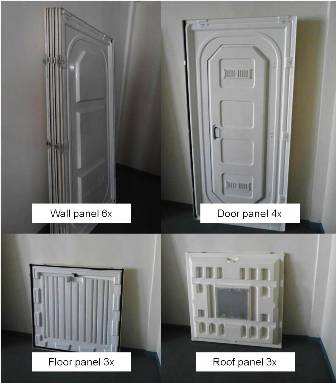

Individual ABS Modular System |
The AAAS individual panel system, without fixtures. To be used as an decontamination unit.
A complete 3 stage set includes:
6 wall panels
4 door panels
3 floor panels
3 roof panels
Technical details:
Material: ABS plastic
Total weight: 185 kg
Dimensions wall and door panel: 95x205 cm
Dimensions floor and roof panel: 95x95 cm
A complete 3 stage set includes:
6 wall panels
4 door panels
3 floor panels
3 roof panels
Technical details:
Material: ABS plastic
Total weight: 185 kg
Dimensions wall and door panel: 95x205 cm
Dimensions floor and roof panel: 95x95 cm

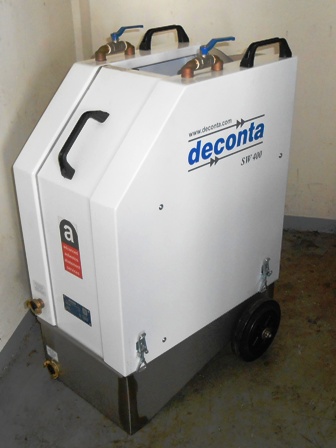

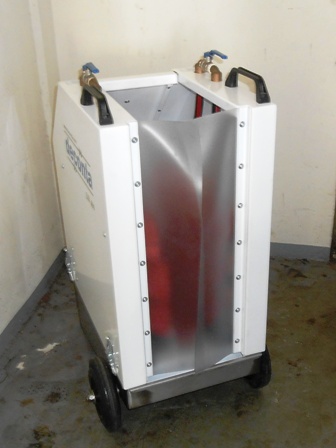

Boot Decontamination Unit |
The use of the boots decontamination unit reduces your cleaning costs, it replaces large-scale and often laborious
cleaning the boots by hand and preventing the transfer of hazardous substances at work in contaminated areas.
The unit is designed for deployment on construction sites. A waste water filter system for cleaning of the contaminated
water can be connected. The boots decon unit includes:
A robust base construction;
Floor pan made of stainless steel, with a powder-coated aluminum housing, two handles and two wheels;
Seven brush packs, including one in the soles range, with high quality brushes
A spray head system with laterally and bottom nozzles. Their special set-up, as well as the proof housing, prevent
upward splashing during use. The upper nozzles are manually switched on, high and low boots;
A central water and drain through a standard hose connection (System Geka).
Water Filter 3-Stage |
The AAAS water filter 3-stage is used to clean the waste water for larger remediation projects. This system is
particularly suitable in combination with a detachable shower or decontamination shower unit.
Features:
Solid housing
Long life
Easy to operate
Technical details:
Dimensions: 250x400x350 mm
Empty weight: 5 kg
Connection: Camlock 75C
Filter system: standard 10" cartridges 100µm, 50µm and 5 or 2 µm
Features:
Solid housing
Long life
Easy to operate
Technical details:
Dimensions: 250x400x350 mm
Empty weight: 5 kg
Connection: Camlock 75C
Filter system: standard 10" cartridges 100µm, 50µm and 5 or 2 µm

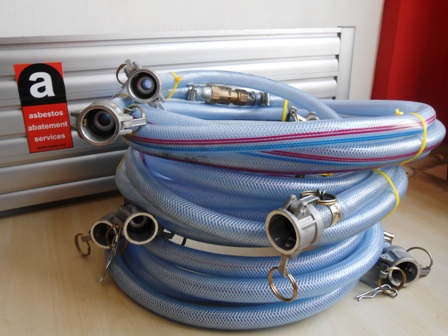

Connection Hose |
A standard set of industrial connection hose for the AAAS decontamination units consists of:
8 meter water inlet hose (1 camlock 75C)
5 meter shower water supply hose (2 camlock 75C)
5 meter waste water hose with strainer (2 camlock 75C)
8 meter waste water outlet (2 camlock 75C)
1 meter waste water outlet (1 camlock 75C)
8 meter water inlet hose (1 camlock 75C)
5 meter shower water supply hose (2 camlock 75C)
5 meter waste water hose with strainer (2 camlock 75C)
8 meter waste water outlet (2 camlock 75C)
1 meter waste water outlet (1 camlock 75C)
